| Item | Notes |
|---|---|

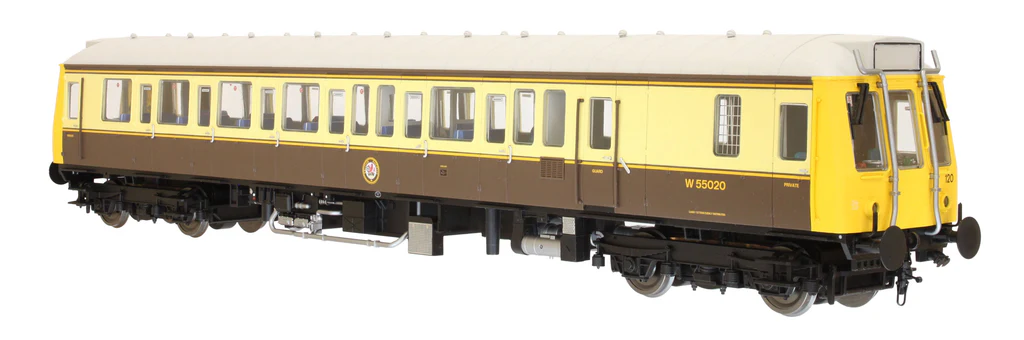

| Manufacturer | Dapol |
| Model number | 7D-009-005C |
| Modifications |
|
| CV changes | None |
| Notes |
|
DCC Address: 5520
| Function | Action |
|---|---|
| F0* | Directional marker lights on/off |
| F1 | 2 engine start/shut down |
| F2* | Brake |
| F3* | High-low horn |
| F4* | Low-high horn |
| F5 | Light loaded mode |
| F6 | Coast |
| F7* | Mid-revs for shunting or cruising |
| F8* | Guard's whistle |
| F9* | Flange squeal |
| F10* | Rear red lights off |
| F11* | Double buzzer code (reply with second press) |
| F12* | Single buzzer code (reply with second press) | F13* | Drivers door |
| F14* | Passenger door slams |
| F15* | Air tanks drain down |
| F16* | Handbrake applied |
| F17* | Windscreen wipers |
| F18* | Droplight window up/down |
| F19* | Directional cab light |
| F20* | Carriage interior light |
| F27 | Sound volume down |
| F28 | Sound volume up |
* denotes functions that are available when the engine is not running.
